DesignMax DM3C

Ceiling Loudspeaker

Robust sound for any environment

Overview

The Bose DesignMax DM3C ceiling loudspeaker offers premium audio performance in a discreet design. Ideal for commercial environments such as retail stores, restaurants, and offices, the DM3C delivers clear, balanced sound with wide coverage, ensuring an immersive audio experience without compromising on aesthetics. Its versatile design and easy installation make it a perfect solution for enhancing any space with high-quality audio.

Key Features

  • Premium Sound Quality: The DM3C features a 3.5-inch coaxial driver that provides clear, balanced sound with rich detail, making it perfect for both music and speech applications.

  • Wide Coverage: Designed to deliver consistent sound dispersion, the DM3C ensures uniform audio quality throughout the listening area, enhancing the overall audio experience.

  • Low-Profile Design: The DM3C's sleek, low-profile design allows it to blend easily into the ceiling, maintaining the aesthetic integrity of the space and without sacrificing sound quality.

  • Easy Installation: Includes integrated mounting hardware for quick and secure installation, making setup fast and hassle-free.

  • Versatile Applications: Suitable for a wide range of commercial environments, including retail stores, restaurants, offices, and more, providing reliable and high-quality audio in any setting.

  • Durable Construction: Built with high-quality materials, the DM3C is designed to withstand the demands of commercial use, ensuring long-lasting performance.

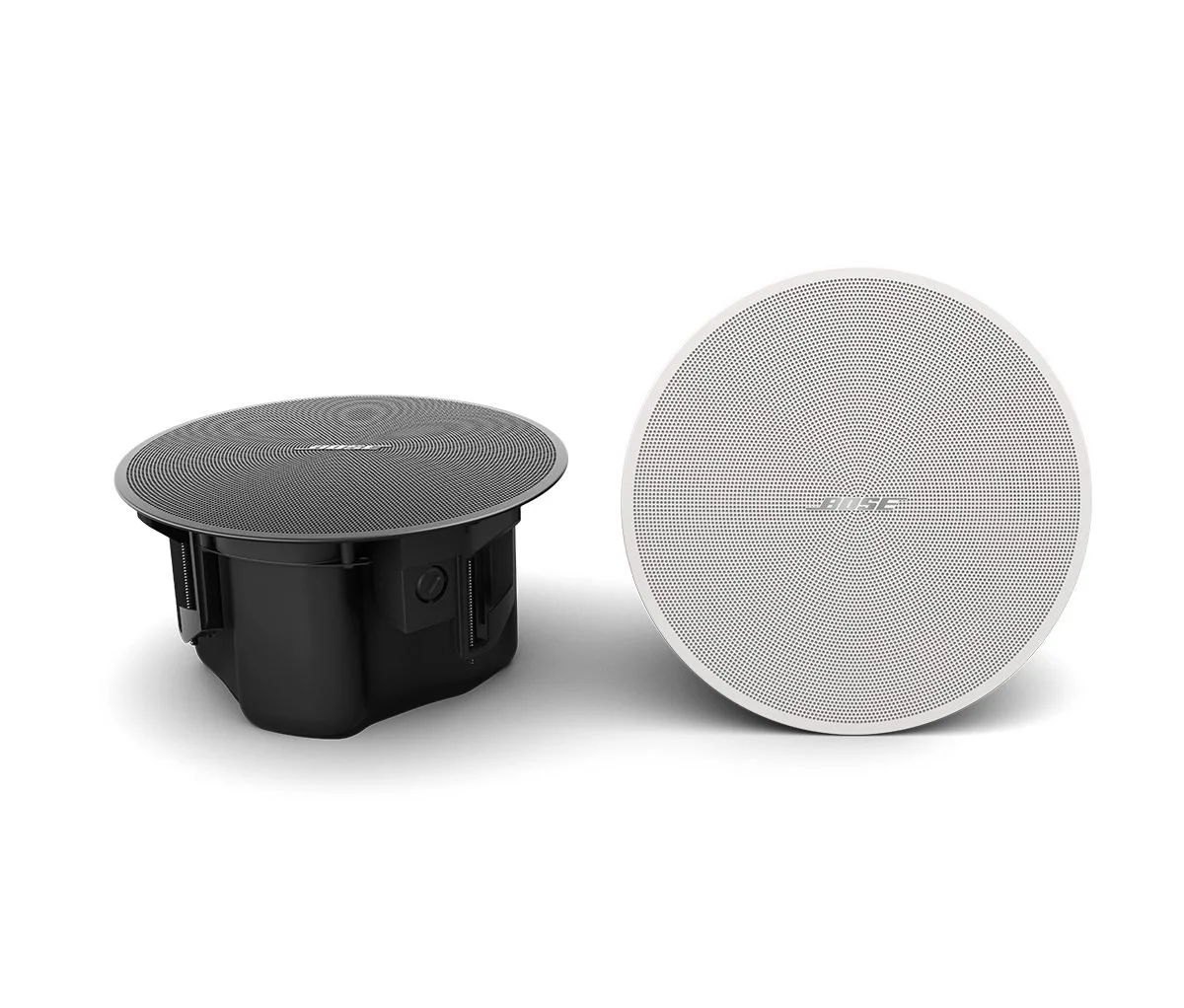

  • Aesthetic Integration: Available in black and white, the DM3C can be customized to match the décor of any space, ensuring an appealing visual integration.

Experience the perfect blend of invisible design and unmatched sound quality with the Bose DesignMax DM3C ceiling loudspeaker. For more details, contact us!

Specifications

  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

  • Colors: Black (RAL 9005), white (similar to RAL 9003), paintable

    Cutout Diameter: 8.2 in (208 mm)

    Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan

    Environmental Testing: Indoor only

    Grille Material: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether

    Logo: Rotatable, removable

    Mounting/Rigging Provisions: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points

    Net Weight: 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)

    Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)

    Product Dimensions (H×W×D): 10.0 in × 6.0 in (255 mm × 154 mm), loudspeaker diameter × depth / 8.0 in × 5.7 in (203 mm × 144 mm), backcan diameter × depth

    Shipping Weight: 19.2 lb (8.7 kg), pair

  • Frequency Range (-10 dB): 75 Hz – 20,000 Hz

    Coverage, Horizontal: 135° conical

    Maximum SPL at 1 m: 98 dB

    Nominal Impedance: 8 Ω (transformer bypass)

    Power Handling, Continuous: 30 W

    Power Handling, Peak: 120 W

    Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available

    Sensitivity (SPL/1 W at 1 m): 83 dB

    Transformer Taps, 100V: 6, 12, 25 W, bypass

    Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, bypass

    Coverage, Vertical: 135° conical

  • Crossover Frequency: 1.7 kHz, passive 2-way crossover

    Driver Protection: Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter

    High-Frequency Transducer Quantity and Size: 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted

    Low-Frequency Transducer Quantity and Size: 1 × 3.25 in (83 mm) woofer
