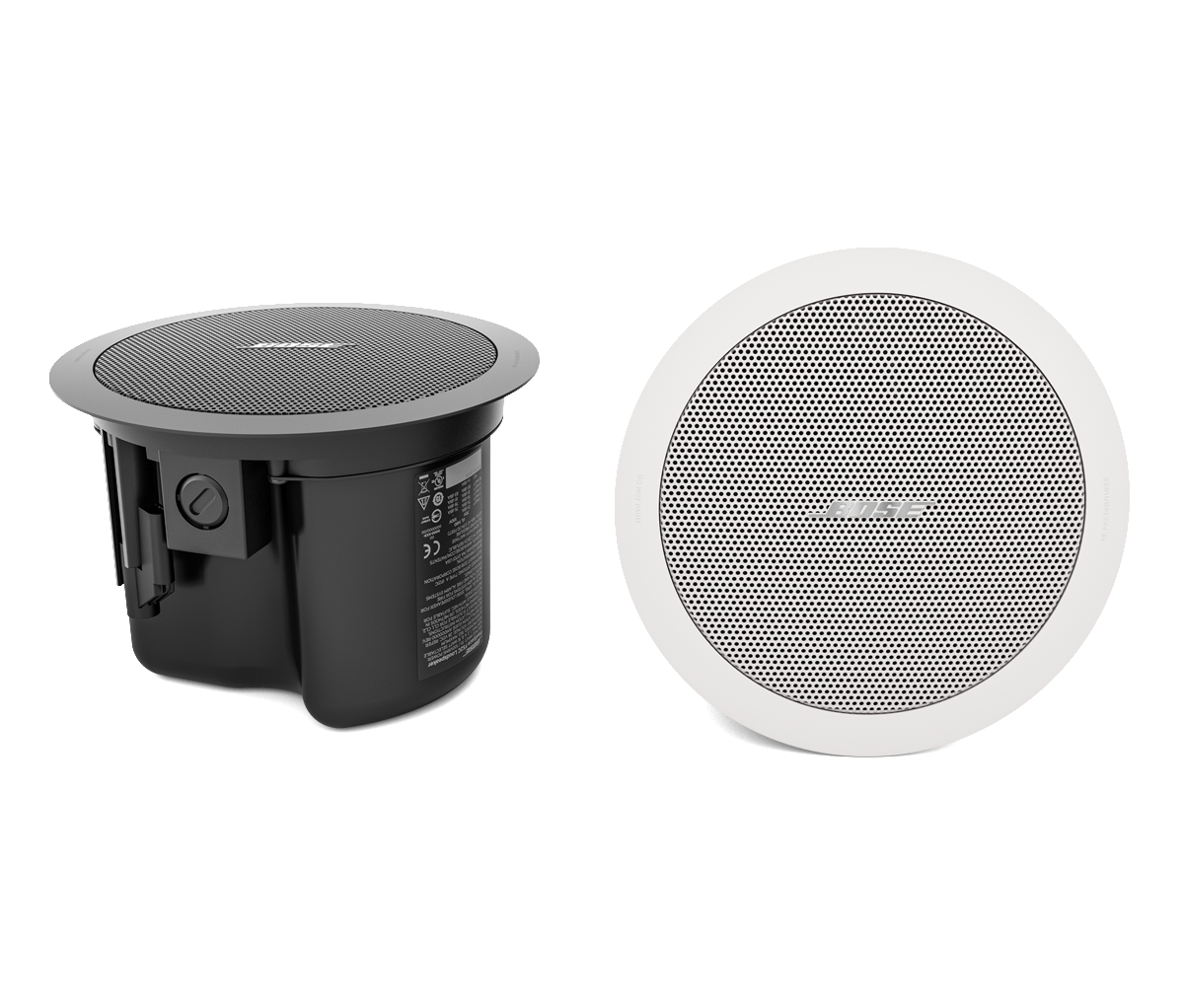

Bose FreeSpace FS2C
In-Ceiling Loudspeakers
Discreet audio for modern spaces
Overview
The Bose FreeSpace FS2C is a high-performance, in-ceiling loudspeaker designed for seamless integration into modern commercial and residential environments. Ideal for background music and clear voice announcements, the FS2C delivers consistent tonal quality throughout your space.
Key Features
Exceptional Sound Performance: Equipped with a full-range 2.25-inch transducer, the FS2C offers clear audio reproduction for both music and voice.
Discreet Design: The in-ceiling design ensures the FS2C blends effortlessly with your surroundings, maintaining a clean and modern aesthetic.
Versatile Installation: Multiple mounting options provide flexibility for various applications. Install the FS2C in ceilings, on walls, or even suspend it from a wire for optimal audio positioning.
Broad Compatibility: Connects effortlessly to a wide range of audio equipment through a comprehensive set of onboard control ports, including Gigabit Ethernet, Cresnet network connectivity, RS-232, IR/serial, relays, and Versiport I/O.
Simplified Integration: Works seamlessly with Crestron Fusion software and XiO Cloud services for centralized management and remote monitoring.
Reliable Operation: Built with high-quality materials and backed by Bose's reputation for durability, the FS2C ensures long-lasting performance.
For high-quality audio in various settings, choose the Bose FreeSpace FS2C loudspeaker. For a live demo or for more details, contact us today!
Specifications
-
Colors: Black (similar to RAL 9005), white (similar to RAL 9003)
Cutout Diameter: 6.3 in (160 mm)
Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan
Environmental Testing: Indoor only, suitable for use in plenum locations
Grille Material: Perforated steel, powder-coated finish
Logo: Rotatable, removable
Mounting/Rigging Provisions: (2) mounting arms, (1) safety cable attachment point
Net Weight: 3.6 lb (1.6 kg), loudspeaker with grille (single)
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D): 7.2 in × 5.2 in (182 mm × 132 mm), loudspeaker diameter × depth / 5.0 in × 4.9 in (127 × 125 mm), backcan diameter × depth
Shipping Weight: 9.7 lb (4.4 kg), pair
-
Frequency Range (-10 dB): 83 – 19,000 Hz
Coverage, Horizontal: 150°
Maximum SPL at 1 m: 98 dB
Nominal Impedance: 16 Ω (transformer bypass)
Power Handling, Continuous: 16 W
Power Handling, Peak: 64 W
Sensitivity (SPL/1 W at 1 m): 86 dB
Transformer Taps, 100V: 2, 4, 8, 16 W, bypass
Transformer Taps, 70V: 1 W, 2 W, 4 W, 8 W, 16 W, bypass
Coverage, Vertical: 150°
-
Driver Protection: Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
Low-Frequency Transducer Quantity and Size: 1 × 2.25 in (57 mm) woofer
-
841154-0310
FREESPACE FS2C PAIR BLK
841154-0410
FREESPACE FS2C PAIR WHT
INCLUDED IN PACKAGING
(1) cutout template
