neat.board
Creativity across the Board.

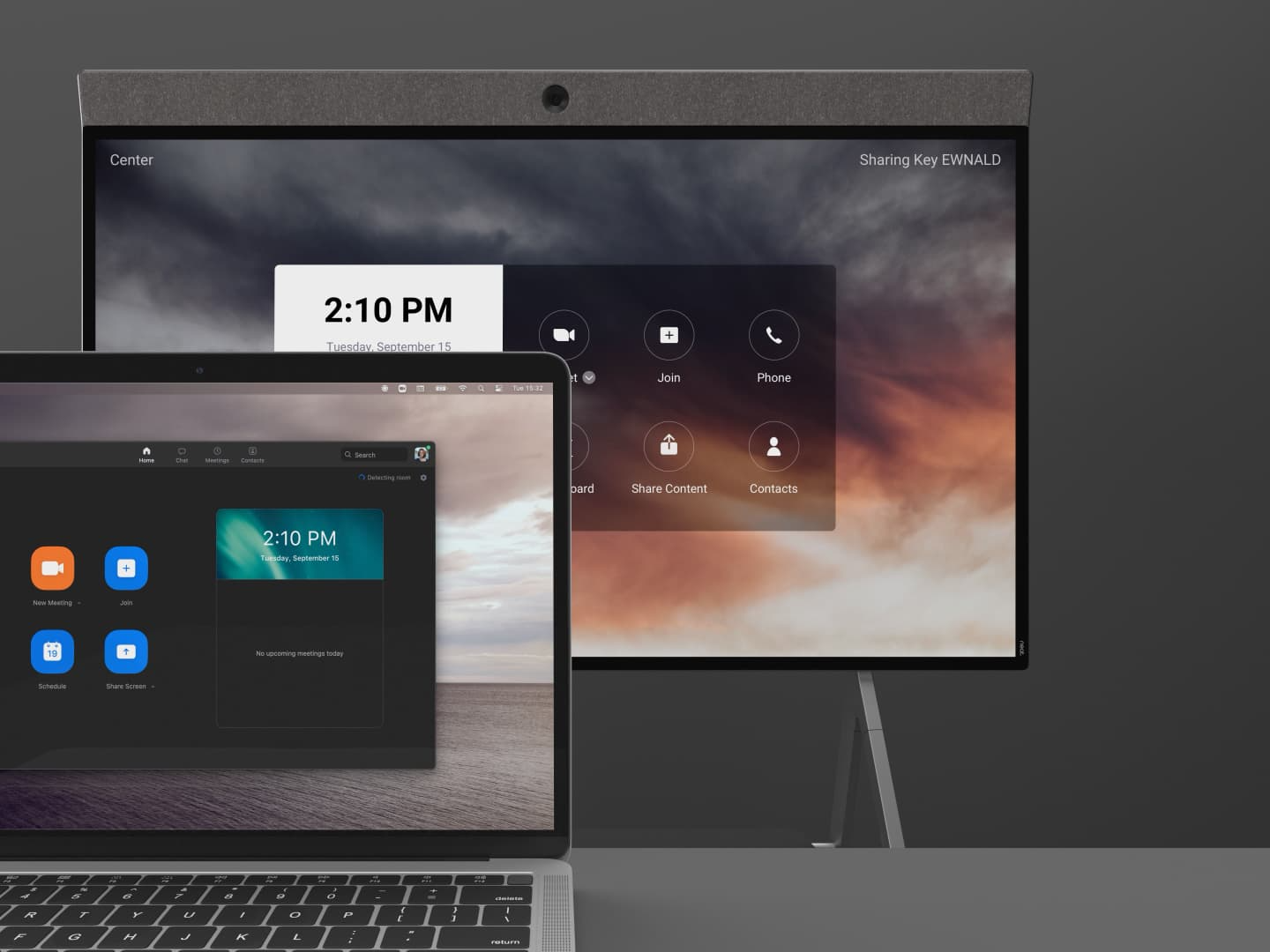

Neat Board is the complete meeting room package in a simple and elegant all-in-one device. With its immersive 65-inch multi-touch screen, powerful audio system and versatile wide-angle camera, Neat Board gives you a collaboration experience beyond video meetings and wireless content sharing by enabling annotations and whiteboarding.
Just works.
Neat Board responds to your presence and automatically wakes up the moment you walk into the room. With just one tap, you can wirelessly share your screen, start a meeting or mark something up. The large multi-touch screen is perfect for taking notes, organizing thoughts and providing quick visual feedback, whether people are right there in the room or on video.
No idea left behind.
With our partners at Zoom, we’re enhancing the whiteboard experience with simple powerful tools that match the way you work. The infinite canvas will provide your team with the space you need to brainstorm, organize and restructure - even when physically apart. Share the output and continue where you left off in the next meeting.
Overview
It’s the total package
Neat Board transforms your meeting room experience by packing powerful technology and all the capabilities of Zoom or Microsoft Teams into an elegant all-in-one design. Just plug in the power cable and you’re ready to go.
A brighter board.
The immersive 4K 65" LED screen with wide-angle viewing and stunning brightness enables everyone in the room to read presentation details and see facial expressions.
And with Neat Board's integrated capacitive multi-touch display, brainstorming and quick visual feedback are just a tap away.
No need for a dedicated PC.
It has a built-in advanced custom-made chip for accelerated audio and video processing.
Responds to your presence.
Acoustic ultrasonic sensors detect people’s presence, saving power when the room’s empty.
One-click wireless sharing and proximity join that works every time.
Integrated Bluetooth support and a wide-angle ultrasonic tweeter that fills all corners of the room ensure reliable device pairing in Zoom and Microsoft Teams.
Brilliantly captures the entire room and zooms in on people.
A custom designed highly dynamic wide-angle 4k camera with ambient light sensor smartly adapts to changing lighting conditions.
Enhances your voice, suppresses noise.
Neat Board’s end-fire mic array uses advanced differential beam-forming with five microphones angled for optimal audio pick up within camera view.
Hardware-based Neat Audio Processing eliminates "double talk" issues (when a person's voice becomes garbled or muted by others talking over them or by any background noise), making conversations more natural.
Safer rooms.
You can monitor in real-time air quality throughout your spaces with built-in sensors that track temperature, humidity, CO2 and VOC (*).
* Not yet supported by Microsoft Teams
Superior sound, clear audio and stable image.
A carefully designed speaker box maximizes tonal range while minimizing distortion. While opposing drivers cancel vibration, and a dedicated tweeter enables high definition sound.
Fanless design allows air to flow freely through the device, eliminating the need for noisy fan-based cooling.
Download Additional Information
Make your mark.
Neat Board comes with a pair of Neat Markers that attach magnetically to the Neat Marker holder, which also serves as cable management. Neat Marker delivers just the right amount of friction for whiteboarding and markup and is passive, so you don't need to set it up or charge it.
Tech Specs
-
65-inch capacitive multi-touch LED screen
Ultra HD 4K (3840 x 2160 screen resolution)
16:9 aspect ratio
Anti-glare and anti-fingerprint coating
Camera LED
System LED
Ambient light sensor
2 × Neat Marker (passive)
Table stand
Floor stand (optional)
Wall mount (optional)
Neat Pad controller (optional)
Neat Pad scheduling display (optional)
BYOD mode (USB passthrough)
Native support for Zoom Rooms
Native support for Microsoft Teams Rooms on Android
Sensors for temperature, humidity, CO2 and VOC (*)
-
4x digital zoom (optional 8x digital zoom)
Fixed lens, infinite focus
F-value: 2.8
4056*3040 (12 MP) capture resolution
120 degrees horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
-
Speaker box for maximum tonal range with minimal distortion
Opposing drivers for vibration cancellation
Dedicated wide-angle ultrasonic tweeter
3 sensor mics
5 beamforming microphones angled in an end-fire array
Hardware-accelerated audio processing (NAP)
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation
-
100-240V ~ 50/60Hz 2.5A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Built-in power supply
Power consumption
Idle: 145W
Idle screen off: 17,5W
In call: 152W
-
WiFi
Bluetooth for Proximity Join in Microsoft Teams
AC Power (internal power supply)
Ethernet
USB-C for BYOD mode (USB passthrough)
HDMI-in for sharing in Zoom or Microsoft Teams (1080p)
HDMI-in (4K)
-
Table stand
Width: 58.1 inches (1476 mm)
Height: 39.5 inches (1003 mm)
Depth: 13.8 inches (350 mm)
Weight: 102.6 pounds (46.5 kg)
Wall mount (optional)
Width: 58.1 inches (1476 mm)
Height: 37 inches (939 mm)
Depth: 4.1 inches (105 mm)
Weight: 111.6 pounds (50.6 kg)
Floor stand (optional)
Width: 58.1 inches (1476 mm)
Height: 71.65 inches (1820 mm)
Depth: 34.98 inches (888 mm)
Weight: 124.6 pounds (56.5 kg)
-
Neat Board
2 × Neat Marker
Neat Marker holder
2.5 mm hex wrench
Power cord (9.9 feet / 3 meters)
Ethernet cable (16.4 feet / 5 meters)
Table stand
2 × M6 screw (2.5 inches / 65 mm)
5 mm hex wrench
What you need
Internet connection
License for Zoom Rooms or Microsoft Teams (**)
-
Wall mount
2 × M6 screw (0.8 inches / 20 mm)
5 mm hex wrench
Floor stand
2 × M6 screw (2.5 inches / 65 mm)
12 × M4 screw (0.3 inches / 8 mm)
5 mm hex wrench
3 mm hex wrench
4 × wheels
Power cord (14.8 feet / 4.5 meters)
Neat Pad
2 × Ethernet cable (9.8 feet / 3 meters + 16.4 feet / 5 meters)
PoE power adapter
Mount adapter, side mount and wall mount
4 × M4 screw (0.39 inches / 10 mm) for the wall mount
3 × M4 screw (0.26 inches / 6.7 mm) for the side mount
2 mm hex wrench
2.5 mm hex wrench
Neat Board is the complete Zoom Rooms or Microsoft Teams package in a simple and elegant all-in-one device.
* Feature not yet supported by Microsoft Teams
** Needs to be purchased from Zoom or Microsoft
