Rally Bar Huddle

All-in-One Video Bar for Huddle and Small Rooms

Google Workspace
Microsoft Teams
Zoom

Overview

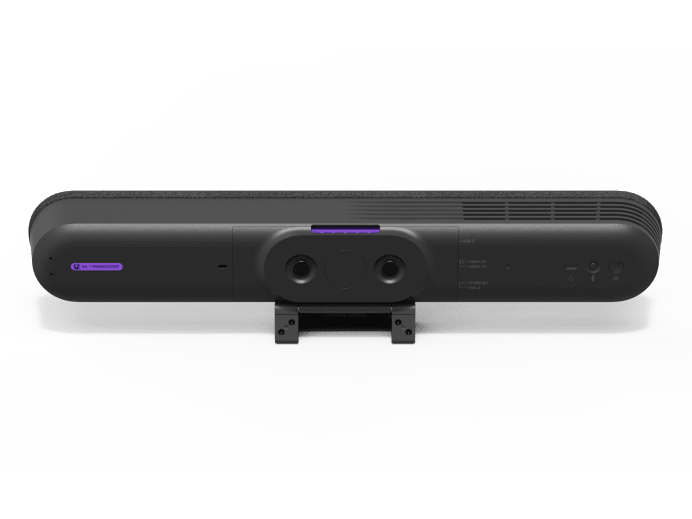

Logitech Rally Bar Huddle is a streamlined, all-in-one video bar ideal for small meeting spaces. It combines advanced technology with a modern design to ensure that everyone is seen and heard clearly.

Home > Logitech > Logitech Rally Bar Huddle

Key Features

  • Elegant and Simple: Rally Bar Huddle offers robust technology in an elegant, user-friendly design.

  • Equitable Meetings: AI-driven video, superior audio pickup, noise cancellation, and continuous software updates provide a clear, natural meeting experience for remote participants.

  • Multiple Deployment Options: Use Rally Bar Huddle as a standalone meeting room appliance, connect it to a room PC in USB mode, or link it to a laptop.

  • Quick and Easy Setup: Designed for rapid deployment, Rally Bar Huddle is easy to install and manage, and integrates smoothly with Tap IP via CollabOS. Comes with a Multi Mount for versatile mounting options: wall, table, or above a display.

  • Neat Cable Management: Designed for huddle and small meeting spaces, Rally Bar Huddle can function independently as a conference camera or as part of a larger room system.

ALLURINGLY SIMPLE

Featuring a sleek design and robust technology - Rally Bar Huddle is a straightforward and powerful solution for small spaces.

3 WAYS TO DEPLOY

Sustainability

  • First Video Bar Made with Recycled Plastic: The plastic components of Rally Bar Huddle are made with up to 42% certified post-consumer recycled plastic, helping reduce the environmental impact.

  • Carbon Neutral Certified: Rally Bar Huddle is carbon neutral, minimizing the carbon footprint of the product and its packaging.

Logitech Sync

  • Logitech Sync:

  • Manage and monitor all your devices and meeting spaces at scale with Logitech Sync. Oversee room health, roll out updates, and adjust settings from a centralized, cloud-based platform.

  • Access premium features like insights, remote UI troubleshooting, and proactive alerts with an Essential or Select license.

Select Service Plan

  • Eliminate collaboration barriers and keep conference rooms ready for action. Enhance uptime with expert support, swift product replacements, and premium Sync functionalities.

Product Specifications

  1. DIMENSIONS

  • Width: 21.6 in (549.6 mm)

  • Height: 3.1 in (78.9 mm)

  • Depth: 3.0 in (76.0 mm)

  • Weight: 3.9 lbs (1.8 kg)

2. COMPATIBILITY

  • Internet Connection: Wired or wireless

  • USB Mode: Windows 11, Windows 10, the two most recent versions of macOS

  • Appliance Mode: Room solution software license (not included)

    Certifications and Compatibility

    • For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.

    General Specifications

    • Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform

    • Enclosure: All-in-one enclosure with field replaceable front cover

    • Device Management: Logitech Sync

    • Displays Supported: 1 (2nd display support is coming soon)

    • Display Resolution: 1080p

    • Network Protocol Support: IPv4, IPv6

    • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

    Camera

    • Digital Pan: ±48° at 4x zoom

    • Digital Tilt: ±32° at 4x zoom

    • Zoom: 4X HD digital zoom

    • Diagonal Field of View: 120°

    • Horizontal Field of View: 113°

    • Vertical Field of View: 80°

    • Resolution: 4K

    Speakers

    • Driver: 2.2 in(55 mm) with bass reflex enclosure and patented suspension design

    • Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter

    • Rated Power: 8W

    • THD at 1W, 1kHz: <2%

    • Speaker Sampling Rate: 48KHz

    • Impedance: 4 Ohms

    Microphones

    • Frequency Response: 90Hz – 16kHz

    • Sensitivity: -36dBFS +/-1 dB @ 1Pa

    • Microphone data rate output: 48 kHz

    • Pickup Range: Up to 23 ft (7m)

    • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

    • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

    • Noise suppression: AI based de-noising algorithm

    Interfaces

    • HDMI Out: 1

    • HDMI In: 1

    • USB: 1x Type A USB 3.1, 1x Type C USB 3.1

    • Network: 10/100/1G Ethernet

    • WiFi: 802.11a/b/g/n/ac

    • Bluetooth: Bluetooth® Low Energy

    Power and Cables

    • Power supply: Auto-sensing

    • Operating Voltage/Power: 100-240V, 19V, 2.1A

    • Power Supply Dimensions: 4.48 in (114 mm) x 1.85 in (47 mm) x 1.27 in (32.3 mm)

    • DC Cable: 5 ft (1.5 m)

    • AC Cable: 3.3 ft (1 m)

    • HDMI 1.4 Cable: 6.5 ft (2 m)

    • USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)

    Environmental

    • Operating Temperature: 0 to 40°C

    • Storage Temperature: -25 to 70°C

    • Humidity: 10 to 90%

    Security

    • File Based Encryption: AES-128

    • Data Encryption: Symmetric Keys, PKI

    • Device Identity: Protected by device attestation

    • Device Access: Authenticated using API

    • Key Protection: Arm TrustZone, RPMP

    Accessories

    • Covers: Rally Bar Huddle Front Cover-Cleanable, Off-White Fabric

    • Mounts: Wall Mount for Video Bars, TV Mount for Video Bars

    • Touch Controller: Logitech Tap (coming soon) and Tap IP
