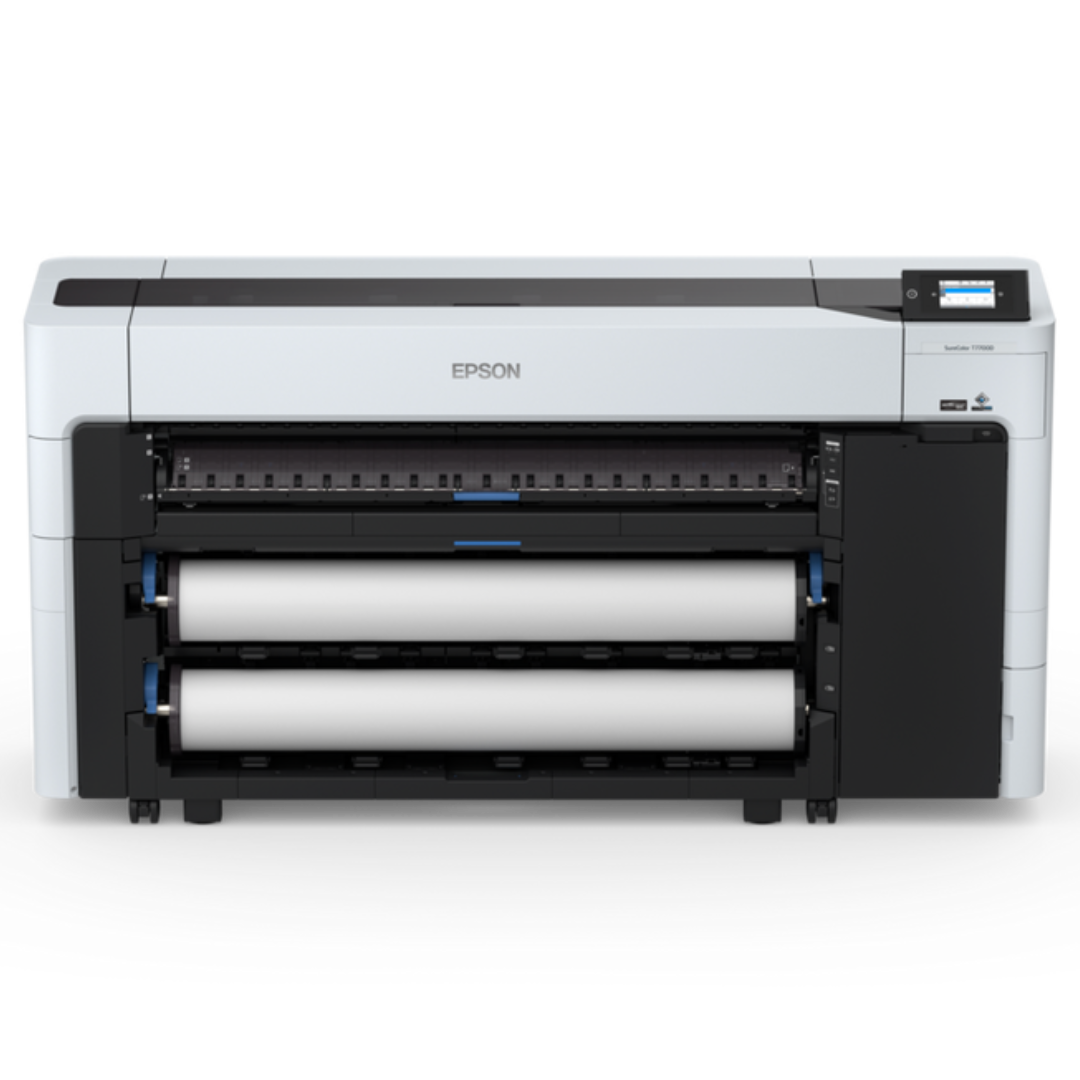

SureColor SC-T7700D

44-inch technical printer

SureColor SC-T7700D

This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.

The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.

Home > Products > Printers > LFP > SureColor SC-T7700D

Overview

Complete document solution

The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.

Fast and feature-rich

High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.

Compact footprint - versatile design

The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.

Key Features

  • Enhanced security features Protect highly confidential documents with ease

  • Compact and contemporary design Fits seamlessly into most working environments

  • Impressive print speeds Up to 130m2/hr

  • Versatility Automatic media loading, dual roll, auto take-up, and auto-switching

  • Quality 6-colour printer with 350/700ml ink cartridges

Highly detailed prints, every time

Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.

Business solutions

The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.

Download Additional Information

Tech Specs

  • Printing Method

    PrecisionCore™ Micro TFP printhead

    Ink Technology

    Ultrachrome® XD3

  • Number of colours

    6 colour

    Colours Capacity

    Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml]

    Minimum Droplet Size

    3,5 pl, With Variable-Sized Droplet Technology

    Minimum line width

    0,02 mm

    Line accuracy

    +/- 0,26

    Print Speeds (CAD A1 page size)

    Quick 3 ppm

    Print from

    PC, MAC, Network, Mobile Device, Direct USB

    Nozzle Configuration

    1.600 Nozzles per Color

    Printing Resolution - Draft

    600 x 600 DPI

    Printing Resolution - Maximum Quality

    2.400 x 1.200 DPI

    Printing Resolution - Speed

    300 x 600 DPI

    Colour Profiles

    ICC Profile

  • Paper Formats

    17", 24", 36", 44", A1, A0, B0, B1 (72.8x102.8 cm)

    Print Margins Roll Media

    Mode 1: 3 mm (top), 3 mm (bottom)

    Thickness

    Single Sheet 0,1 mm, Roll 0,8 mm, Rigid board suppported

    Auto Take Up Reel

    Yes

    Printable Length

    Roll 91 Minimum

    Roll Capacity - Diameter

    Roll 1: 170 mm, Roll 2: 170 mm

    Roll Capacity - Weight

    Roll 1: 12.500 g, Roll 2: 12.500 g

    Borderless printing on

    10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll

  • Power consumption

    70 Watt, 0,3 Watt (standby)

    Supply Voltage

    AC 100 V - 240 V, 50 Hz - 60 Hz

    Product dimensions

    1.848‎ x 499 x 975 mm (Width x Depth x Height)

    Product weight

    155 kg

    Sound Power

    Operation: 49,6 B (A) - Standby: 6,6 B (A)

    Mobile and Cloud printing services

    Apple AirPrint

    Noise Level

    Operation (Roll): 6,6 dB (A) Operating (Sheet): 6,6 dB (A)

    What's in the box

    Ink set, Maintenance box, Maintenance boxes, Setup guide, SureColor T-Series Printer, User manual (CD), Warranty Documents

    Optional extras

    Document carrier sheet A0, Cover Plus warranty extensions, SSD (Solid State Drive), Roll Feed Spindle 44"

  • Warranty

    24 months On-site service

  • Memory

    4 GB

    Compatible Operating Systems

    Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later

    Emulations

    ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL

    Optional storage

    1TB SSD

    Features

    Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology

    Interfaces

    Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac

    Network

    Wired, Wireless

    Optional Software & Solutions

    Epson Print Automate, Epson Cloud Solution PORT, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless

    Security

    SNMP, IPSec, AES-128, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC - Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS

  • Panel

    Type: Color, Touch-panel, Diagonal: 11 cm
